Bonjour,
J’ai réalisé un capteur de distance pour détecter si une voiture est présente dans le garage (ou ailleurs).
Pour ceux que ça intéresse, je ne vais pas réalisé de tuto mais je partage rapidement ce que j’ai fais.
Matériel:
-ESP8266 (j’ai un type Wemos d1 Mini)
-Capteur Ă ultrasons HC-SR04
Application:
-Homeyduino
Il faudra ensuite par le logiciel Arduino IDE (dispo sur Mac et Windows) paramétrer et téléverser le code ci dessous dans la carte ESP8266 (sans oublier modifier votre type de carte et de télécharger les librairies adaptées, le sujet est traité partout sur le web).
Fixer l’adresse IP de votre ESP8266 dans votre routeur/box internet (C’est du moins conseillé)

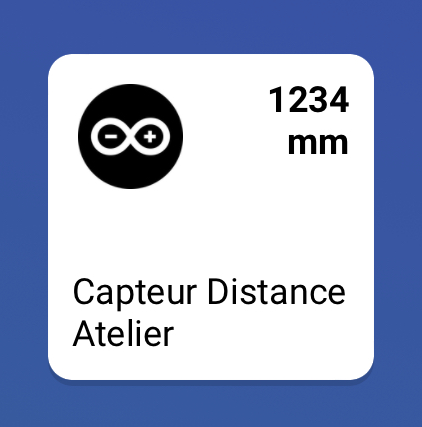

Ajouter un device depuis l’application Homeyduino, elle devrait détecter votre carte avec le nom que vous lui aurez donné.
J’espère que ça en aidera certains.
Bonne année 2022!
GOOGLE TRANSLATE:
Hello,
I made a distance sensor to detect if a car is present in the garage (or elsewhere).
For those who are interested, I will not do a tutorial but I quickly share what I have done.
Equipment:
-ESP8266 (I have a Wemos d1 Mini type)
-Hc-SR04 Ultrasonic Sensor
Application:
-Homeyduino
You will then have to use the Arduino IDE software (available on Mac and Windows) to configure and upload the code below in the ESP8266 card (without forgetting to change your card type and download the appropriate libraries, the subject is covered everywhere on the web) .
Set the IP address of your ESP8266 in your router / internet box (at least it is recommended)
Add a device from the Homeyduino application, it should detect your card with the name you have given it.
Hope this helps some.
Happy New Year 2022!
// Project: Get a distance measurement sensor with an ESP8266 Wemos d1 Mini board (ESP-12x) connected to a HC-SR04 Ultrasonic sensor
#include <ESP8266WiFi.h>
#include <WiFiClient.h>
#include <Homey.h>
#include <HCSR04.h>
/*
MAPPING PINOUT
_________________
/ WEMOS d1 Mini \
| |
| |
1 --> |o TX RST o|
3 --> |o RX A0 o|
5 --> |o D1 D0 o| <-- 16
4 --> |o D2 D5 o| <-- 14
0 --> |o D3 D6 o| <-- 12
2 --> |o D4 D7 o| <-- 13
|o G D8 o| <-- 15
|o 5v _____ 3v3 o|
| |micro| |
|_______|_usb_|_______|
*/
UltraSonicDistanceSensor distanceSensor(12, 13); // Initialize sensor that uses digital pins. The first number is Trigger and the Second is Echo. (Here Trigger is on 12 (D6) and Echo on 13 (D7) )
unsigned long previousMillis = 0;
const unsigned long interval = 5000; //Interval between two measures in milliseconds
void wifi() {
if (WiFi.status() != WL_CONNECTED) {
WiFi.begin("YOUR_SSID", "PASSWORD"); // Replace YOUR_SSID by your WiFi router's name and the PASSWORD by the password to connect to your WiFi
uint8_t timeout = 30;
while (WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.println("connecting...");
if (timeout<1) break;
}
if (WiFi.status() == WL_CONNECTED) {
//Print IP address
Serial.print("WiFi Connected! The IP adress is: ");
Serial.print(WiFi.localIP());
Serial.println("");
}
}
}
void setup() {
Serial.begin(115200);
Homey.begin("NAME"); // Replace NAME by the name you want use for your sensor
Homey.setClass("sensor");
Homey.addCapability("measure_rain"); //I give measure_rain capability because it's the only one who has a unit in millimeters. To note, It will be appear like a rain sensor.
//Device Capabilities can be found here: https://apps-sdk-v3.developer.homey.app/tutorial-device-capabilities.html
}
void loop() {
wifi();
Homey.loop();
unsigned long currentMillis = millis();
if(currentMillis - previousMillis > interval) {
previousMillis = currentMillis;
updatesensor();
}
}
void updatesensor() {
int distance = distanceSensor.measureDistanceCm()*10; //Convert centimeters to millimeters
Serial.print(distance);
Serial.print(" mm ");
Serial.println("");
Homey.setCapabilityValue("measure_rain", (distance));
}
